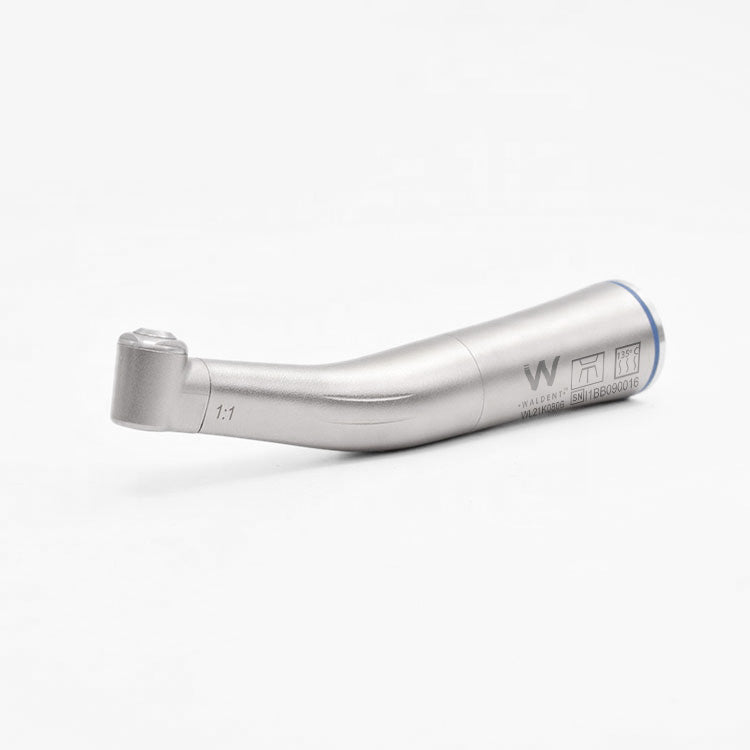

Waldent 1:1 Contra Angle Handpiece is specially designed for optimum results and is the result of close attention to detail, high operational safety and stainless steel construction.
Microfilter is to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times. The Waldent Single Water Spray effectively cools the surface of the bur with a high cooling effect. DURACOAT Waldent latest surface enhancement technology, takes advantage of the non allergic and biocompatible properties of titanium to further improve durability. DURACOAT creates a smooth, scratch resistant surface which is comfortable to hold
- Perfect balance
- Ultra light
- Mini size Fatigue free after long time use
- Powerful functions
- Small head slim body
- Low noise & vibration
- Durable,1:1 speed increasing
- High hardness, Wearable.
- Max. Rotation - 40,000rpm
- Gear Ratio - 1:1
- Bur Type - ∅2.35mm CA Bur
- Chucking Length - 11.5mm
- Max. Bur Length - 22.5mm
- Water Spray Type - External Spray
- Air pressure - 0.20- 0.25MPa (2.0-2.5Kgf/cm3)
- Autoclavable - Up to 135 °C
- Premium Quality Handpiece
- Smaller head and enhanced technology
- Ergonomic design for a comfortable grip
- Autoclavable at 135°C
- Long life span
- Smooth operation
- Light Weighted
- Constructed with high-quality raw materials.
Direction to Use :-
- Assemble the electric motor system and attach the contra-angle handpiece to the motor
- Select the mode of function according to the procedure
- Speed can be selected according to function.
- Direction of rotation should also be chosen.
- The handpiece can now be used
- Handpiece should be cleaned and lubricated for optimal performance and prolonged life after every use.
Q.What is the gear head ratio of this handpiece?
A.The gear head ratio is 1:1.
Q.Is this Autoclavable?
A.Yes, This is autoclavable Upto 135 °C.
Q.What type of cartridge is it?

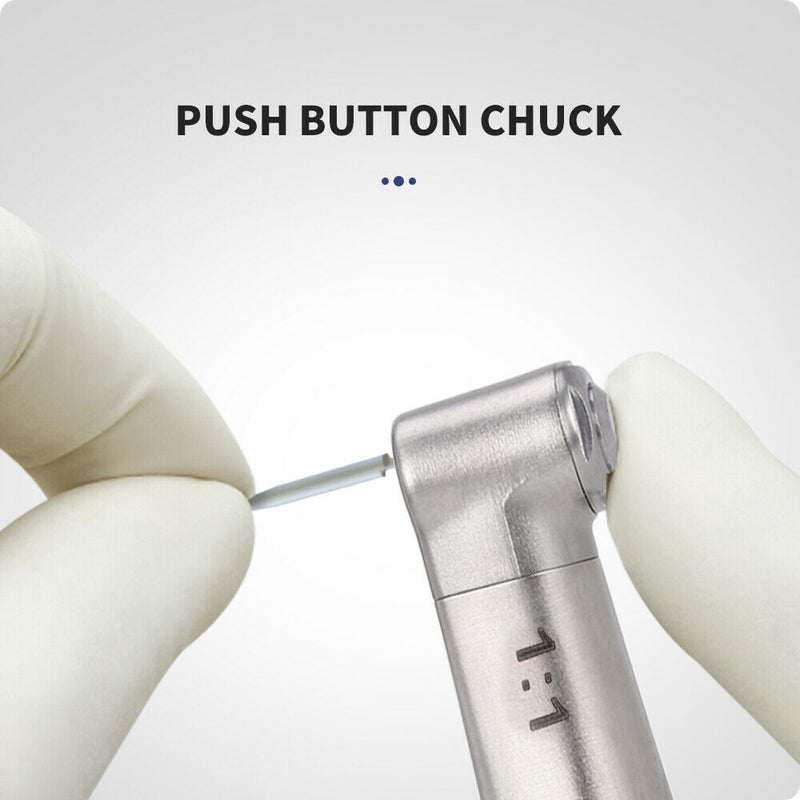

A.This handpiece cartridge is a push-button type.
Q. What type of bur can be used in this contra angle handpiece?
A. CA/RA bur with 2.35mm diameter fits in this handpiece.
- 1 x Contra Angle Handpiece
- 6 months warranty is applicable for this product.
- Service and warranty for this product are handled by Waldent.
- Waldent will be liable to mend any faulty or unsatisfactory products.
- Waldent will provide guaranteed assistance to the customer in registering a request to get the product replaced or serviced.
- The buyer acknowledges that products once sold will not be exchanged or taken back only if seal of the package or product is intact or unaltered or is not tampered with .
- This warranty is void if altered anyway.
