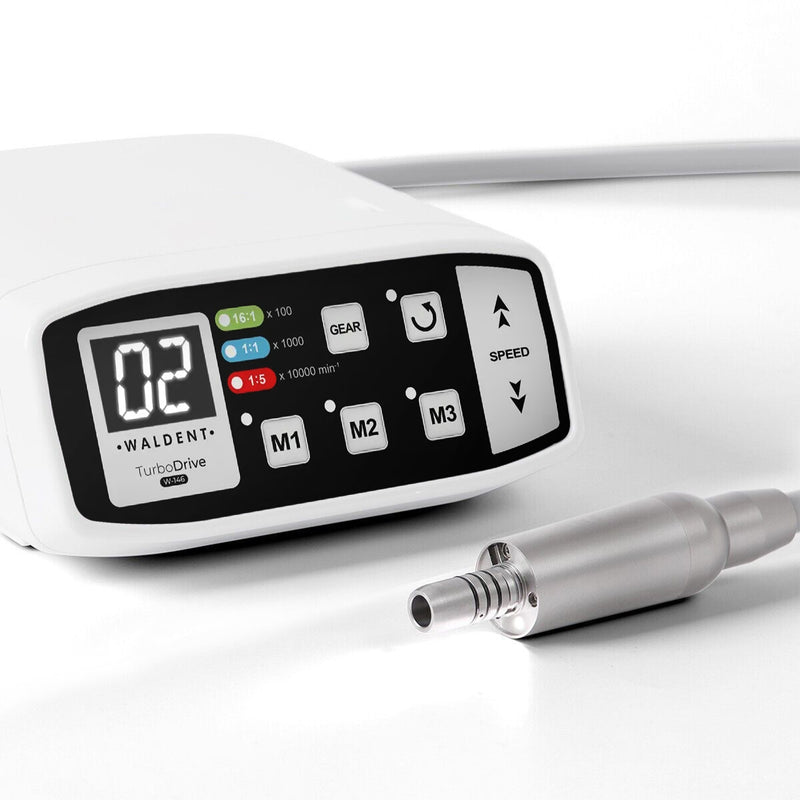

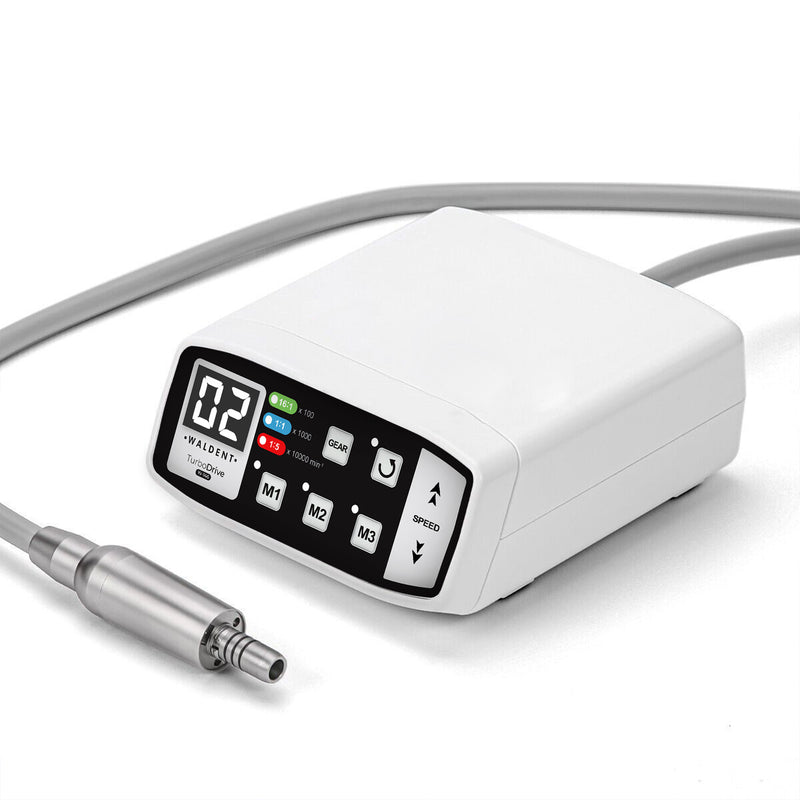

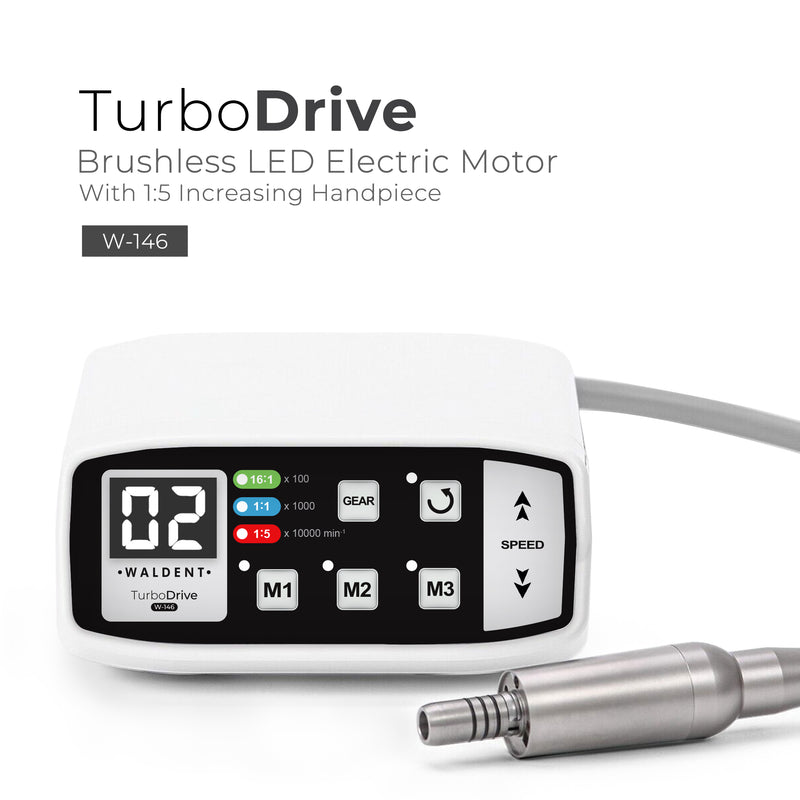

Waldent TurboDrive Brushless LED Electric Motor With 1:5 Increasing Handpiece (W-146)
Save 17%
Share this product
Description
The New-Gen technology of electric motor
The New-Gen technology of micromotor
There are basically two types of handpieces, air-driven and electric. Electric handpieces are much stronger than air-driven since a motor is spinning the bur as opposed to air. This allows the doctor to remove decay at a faster pace. This will cut down on the time it takes to complete a procedure. Electric handpieces are routinely used in surgical procedures as implants as well. We also have specific electric handpieces used specifically for endodontics (root canals).
ADVANTAGES:
Perfect balance
Ultra light
Mini size Fatigue free after long time use
Powerful functions
With LED illumination
Small head slim body
Low noise & vibration
Durable,1:5 speed increasing
High hardness,Wearable
Corrosion resistance
TECHNICAL SPECIFICATIONS:
Increasing 1:5 ratio
Internal 4 water sprays
Import ceramic bearing
Clamping force: 4.0kg
Air pressure: 0.3mpa-0.35mpa
Rotate speed : 10,000-200,000rpm/min
Min intensity: 25,000lux
Bur applicable: 1.60mm
Noise : ≤60db
Chuck type: Push button
Suitable for disinfection of high temperature steam at 135℃
Light：White LED
135℃ Autoclaved sterilization（only for micromotor）

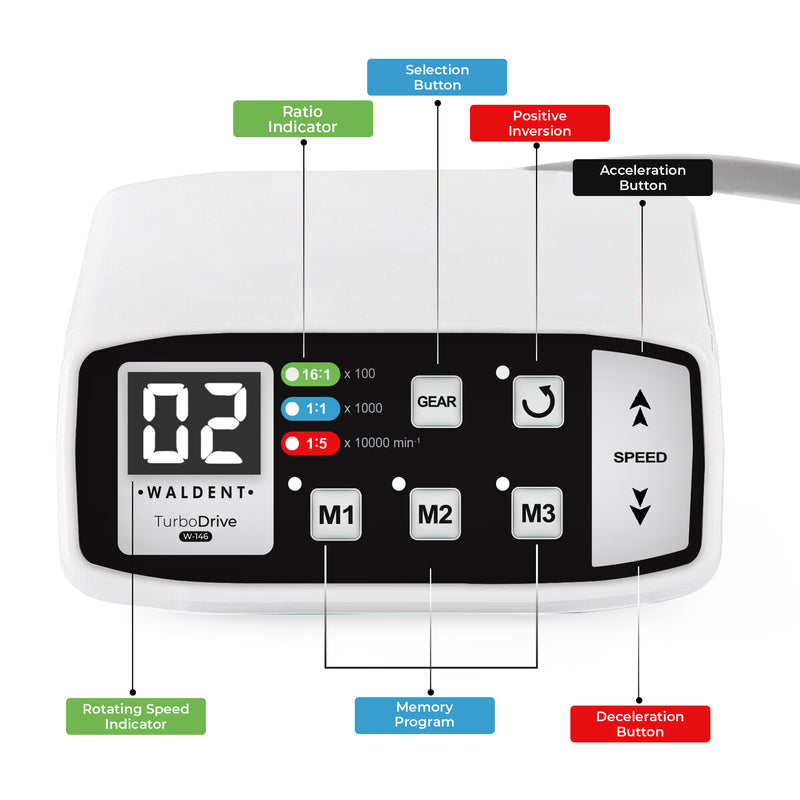

Simple operating system
Connect the Chair Hole Coupling & Waldent Brushless LED Electric Motor with their respective connectors in Control Unit, use the foot pedal to control the electric motor. According to the different treatments and different handpieces, the speed can be adjusted from 100—200,000 rpm.
Compact and handy, high torque

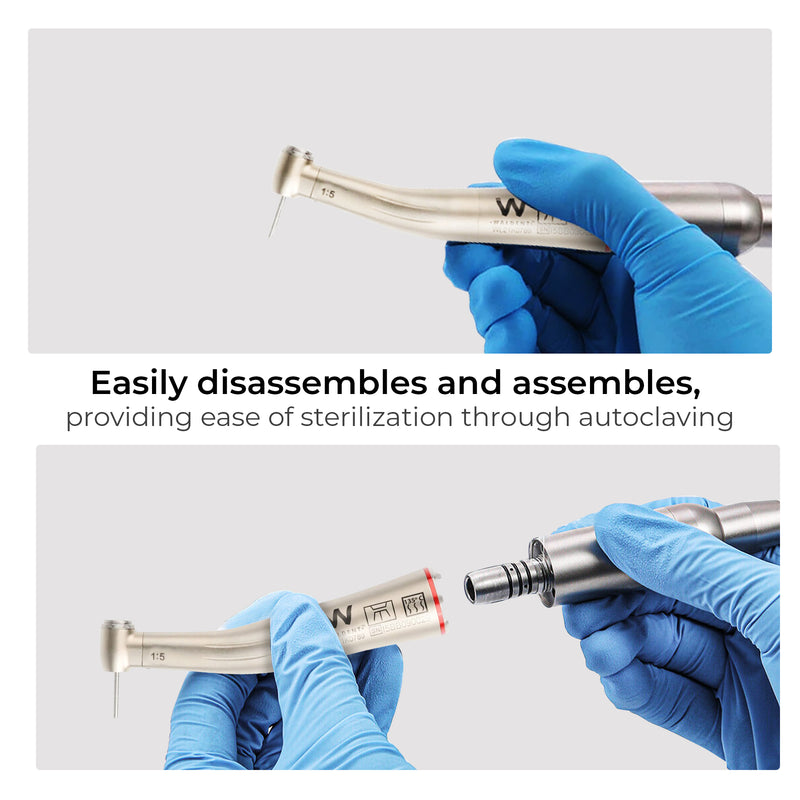

Ergonomic designed length and weight greatly reduce the fatigue from long time operation, the motor can be sterilized. 2 Steps for upgrading the dental unit : Air & Electricity.
1 x Micromotor
1 x Control unit
1 x Micromotor tube
1 x Power adaptor
1 x Operation manual
1 x 1:5 Gear Handpiece
Manufacturer/Importer warranty of 12 months as applicable for this product.
