The integration of a generator in the coupling enables the use of these airotors with the light on the turbine hose without any power supply.
Ceramic ball bearing in the handpiece with light ensures vibration-free and quiet operation and also provides long service life.
INDICATION -

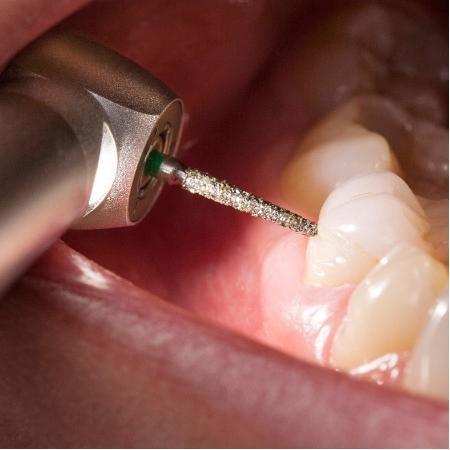

Used for cavity preparation, removal of tooth structure and margin creation.
ADVANTAGE -
Unique electric generator, just a little air can generate sufficient power
Self-illumination without connecting the circuit to provide shadow-free illumination
Push-button cartridge to change bur, easy and convenient.
Autoclavable at 135℃ to avoid cross-infection.
3 jets water spray for effective cooling of bur and treating contact surface
High-grade material with a stylish design
Bordon 2-Hole connection for better compatibility.
TECHNICAL SPECIFICATIONS:
Rated Air Pressure
0.25 MPa
Water Pressure
0.2 MPa
Chuck Bur
Push Button
Rated Rotation Speed
380000-480000 rpm
Cooling Type
3-Hole Water Spray
Noise
< 70dB
Disinfection
Autoclavable at 135 ℃
Lubrication
Good Quality Oil like W&H, NSK, Kavo
MAINTENANCE OF THE HIGH-SPEED HANDPIECES
During the period of warranty, the dentist has to follow the manufacturer’s instructions and lubricate the handpiece with the lubricants supplied by the manufacturer.
During autoclaving or sterilization procedures one must also follow the manufacturer’s instructions as far as the temperature to which the handpiece can be subjected to.
Maintain the Air-Pressure of the compressor, it should not be more than 0.2 Mpa
STERILIZATION:
Brush off excess dirt & wipe clean with an alcohol-soaked cloth
Insert the handpiece in a sterilization pouch & seal it
Autoclave for 20min. at 121°C or 15min. at 135°C

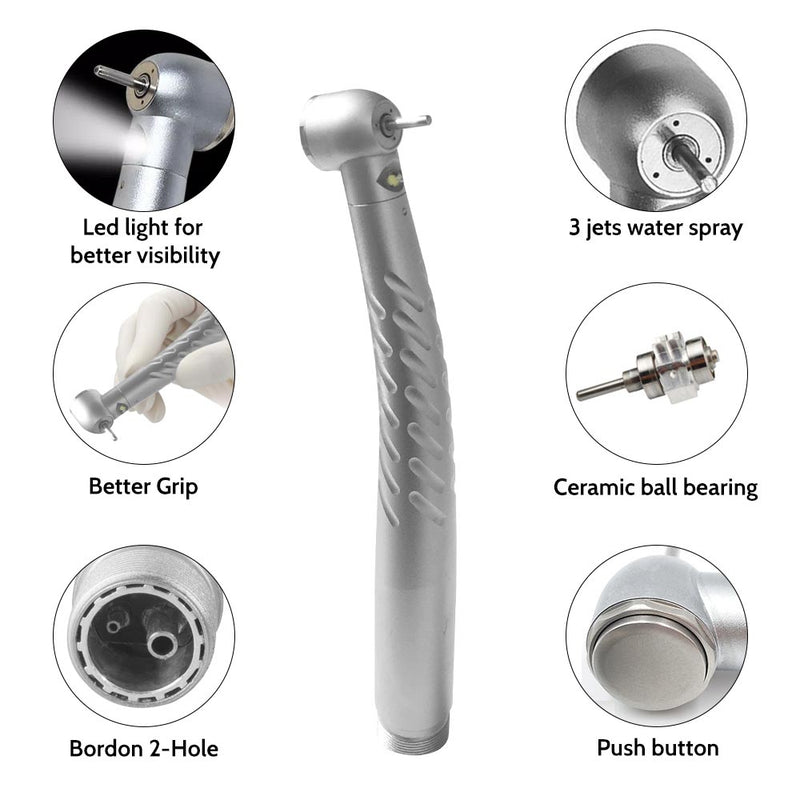

Light

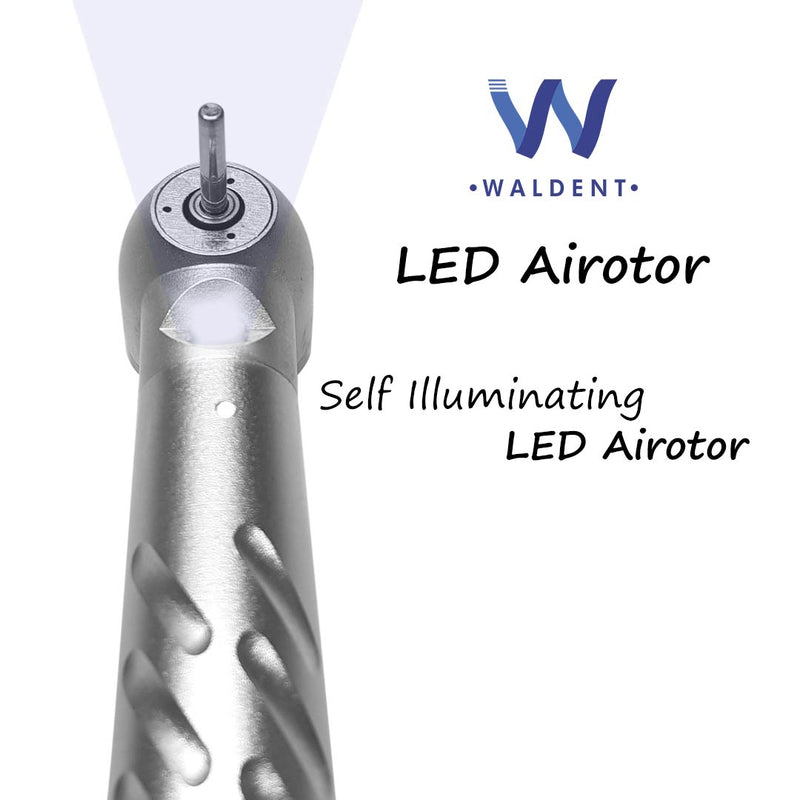

Unique electric generator,just a little air can generate sufficient power
Self-illumination without connecting circuit to provide shadow free illumination
Integration of generator in the coupling enables the use of these airotors with light on the turbine hose without any power supply.
Water Spray
Jets water spray for effective cooling of bur and treating contact surface
Bearing
Ceramic ball bearing in the handpiece with light ensues vibration- free and quiet operation and also provide long service life
Ergonomic Design
High-grade material with a stylish design
Push button cartridge to change bur, easy and convenient
