Advanced touch-screen dental implant motor for precise and safe implant placement
Waldent PhysioDrive Implant Motor (WIMU101) is a sophisticated and reliable dental surgical tool designed to facilitate precise and efficient implant procedures. With its advanced features and user-friendly interface, it ensures smooth and controlled drilling, positioning, tapping, and implanting processes. The motor offers a wide range of speed adjustments (200-40000rpm) and torque settings (5-80Ncm), accommodating various clinical requirements. Safety is a top priority, as the device incorporates torque protection to prevent excessive force during operation. The touchscreen interface and foot pedal enable convenient program selection, speed control, and direction adjustments. The motor also features a peristaltic pump system with six adjustable water flow levels for efficient cooling and irrigation.
Maintenance should be performed only by trained professionals, ensuring optimal performance and longevity. The device's standard symbols provide essential information for usage and disposal compliance. The Waldent PhysioDrive Implant Motor is a dependable and innovative tool, that empowers dental practitioners to execute implant surgeries with precision and confidence.
Key Specifications:
PhysioDrive:-
-
Power supply voltage: AC100-120V/200-240V
-
Power supply frequency: 50/60Hz
-
Input power: 150VA
-
Dimension: 286mm*252mmx113mm
-
Weight: 4.35Kg
-
Rotating speed range: 200-40000rpm
-
Torque: 5-80Ncm (Speed ratio: 20:1)
Implant Motor:-
-
Input voltage: DC30V
-
Dimension: 21.5mmx108mm
-
Tail cord length: 1.8m
Foot pedal controller:-
Features:
-
Versatile Dental Procedures: Capable of implantation, restoration and extraction of impacted teeth
-

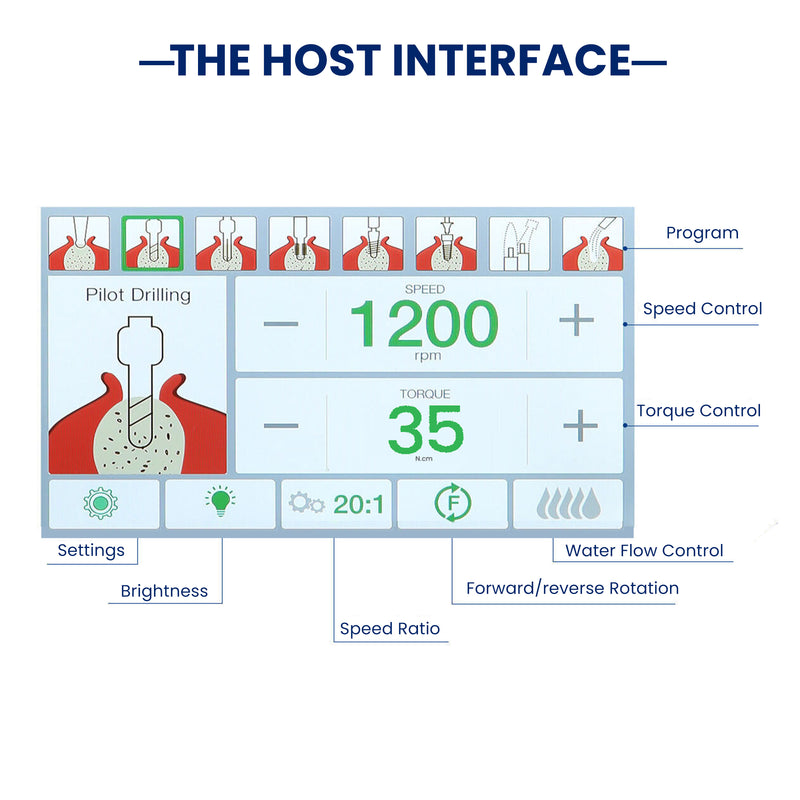

Intuitive 7-inch Touch Screen: Large, ultra-sensitive touchscreen for easy navigation in different lighting conditions.
-
Precise Pedal Control: Multifunctional pedal for accurate forward and reverse rotation, program selection, and water volume adjustment.
-
Multiple Program Modes: Eight program modes for flexibility in handling various dental procedures.
-

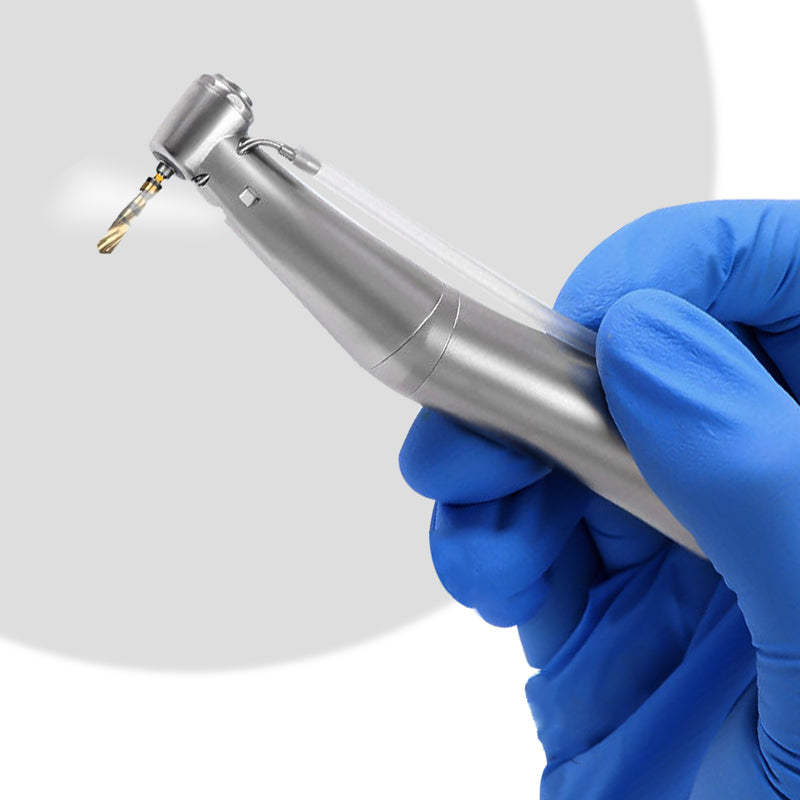

Illuminated Handpiece Motor: Integrated LED lighting for improved visibility and sterilization at high temperatures.
-
Accurate Positioning: Assists in precise positioning on the alveolar bone using a positioning drill.
-
Hole-Drilling Assistance: Helps determine drilling direction and depth for accuracy.
-
Hole-Broadening Support: Determines hole diameter to match the chosen implant size.
-
Tapping Functionality: Creates threads on the hole for secure implant placement.
-
User-Defined Mode: Allows customization with different handpieces for varied dental procedures.
Packaging:
- 1 x Control Unit
- 1 x 20:1 Contra handpiece
- 1 x Handpiece holder
- 1 x Foot Pedal Handle
- 1 x Foot Pedal
- 1 x Infusion Bracket
- 1 x Motor
- 1 x Power Cord
- 2 x Irrigation Tubes
- 1 x Screwdriver
- 2 x Screw
- 1 x Fuse
- 8 x O Ring
- 5 x Pipe Clip
- 1 x Handle Circlip
- 1 x Aluminium Case
Warranty:
- 1 Year is applicable for this product.
