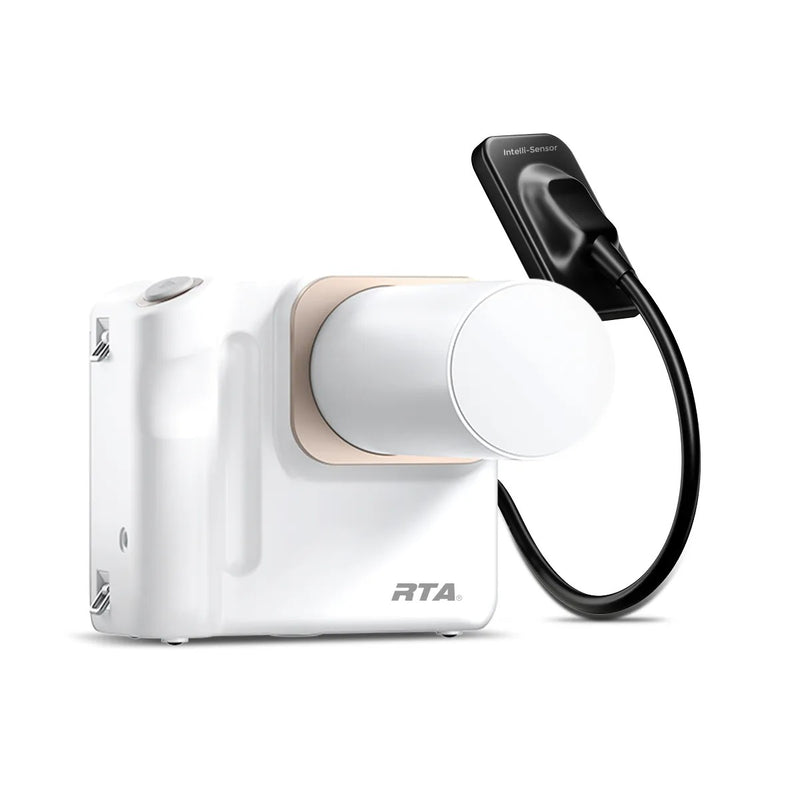

Waldent RTA Intelli-Sensor RVG Size - 1.5 + Waldent RTA Smart Ray Portable DC Xray Machine By Woodpecker Combo
Save 57%
Share this product
Description
High-quality dental digital radiography sensor compatible with Windows and a portable X-ray machine for precise imaging with minimal radiation exposure.
Waldent RTA Intelli-Sensor RVG Size - 1.5 + Waldent RTA Smart Ray Portable DC X-Ray Machine by Woodpecker is a comprehensive dental imaging solution designed to enhance diagnostic precision and streamline workflow in clinical practice. This advanced combo brings together the ultra-high-resolution capabilities of the Intelli-Sensor RVG with the portability and efficiency of the Smart Ray DC X-Ray Machine, offering unmatched performance and ease of use.
The RVG sensor features a sleek, ergonomic design for comfortable patient positioning and delivers crystal-clear digital radiographs in real time, enabling accurate diagnosis and faster treatment decisions. Its IP68-rated construction ensures durability and longevity, even in demanding clinical environments.
Complementing the sensor, the Smart Ray Portable DC X-Ray Machine provides stable and consistent X-ray output with minimal radiation exposure. Its lightweight, compact build allows easy maneuverability across treatment rooms, making it ideal for multi-chair setups and space-conscious practices. Together, this duo delivers a future-ready imaging experience with superior clarity, convenience, and clinical confidence.
Image Resolution: Ultra-high resolution for clear diagnostics
User Interface: High-quality, user-friendly interface
Design: Comfortable and ergonomic design
Scope of Application: Oral two-dimensional image capturing, case diagnosis, information management
Operation Mode: Intermittent operation mode
Electric Shock Protection: BF type applied part
Water Ingress Protection: IP68
X-ray Generator Compatibility: Compliant with dental X-ray machine standards
Power Adapter Input: 5V/USB interface
Mechanical Size - 1.5 : 43.5*29.2*4.5mm
Effective Area Size - 1.5 : 24*33mm( Size - 1.5)
Pixel Size: 20μm
Effective Resolution: > 12Ip/mm
Temperature: 10℃ to 35℃
Humidity: 20% to 90%
Atmospheric Pressure: 70kPa to 106kPa
Installation Application Specification:
Operating System: Windows® 7 or above
Processor: Intel® Core 4
Memory: 8 GB or above
Hard Disk: 500 GB or above
USB Port: 4 high-speed USB 2.0 ports
USB Chip: Intel or NEC / RENESAS
Display Resolution: 1920 x 1080
Software Installation: Run the "Ai-Dental setup.exe" installation program
Sensor Support Frame Installation: Fixed on flat wall with two screws, Secure sensor on support frame when not in use

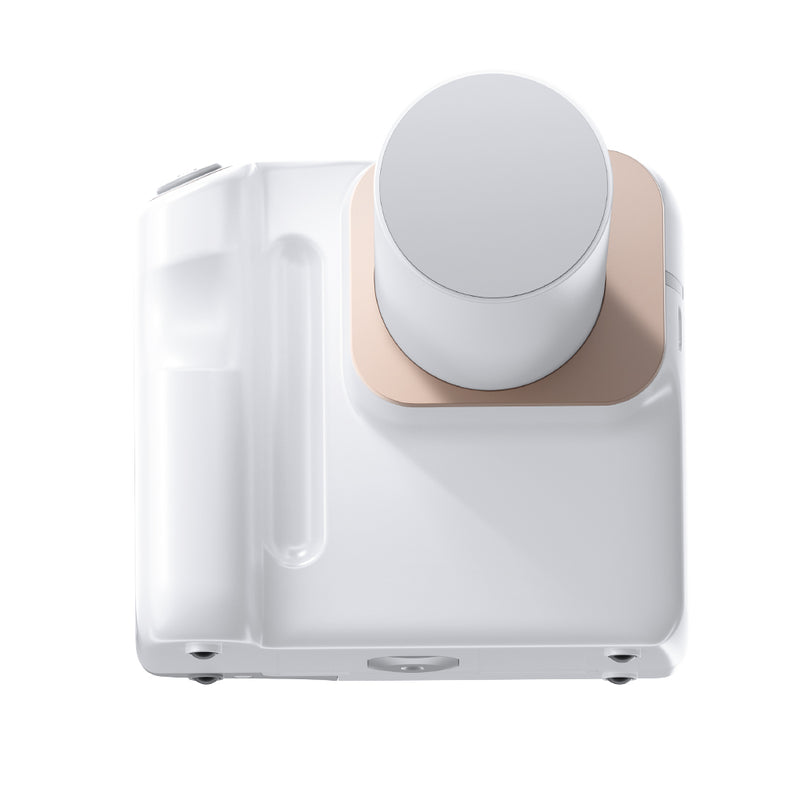

Waldent RTA Smart Ray Portable DC X-Ray Machine
Tube Voltage: Fixed at 70kV ±10%
Tube Current: Fixed at 2mA ±20%
Focal Spot Size: 0.4mm
Target Angle: 12.5°
Maximum Output Power: 0.14 kW
Nominal Power: 0.14 kW (70kV, 2mA, 0.1s)
Exit Field Size: Φ5.9cm ±0.1cm
Battery: 18650×3 (10.8V, 2500mAh, 27Wh)
Charging Time: Full charge in 1 hour (48W charger)
